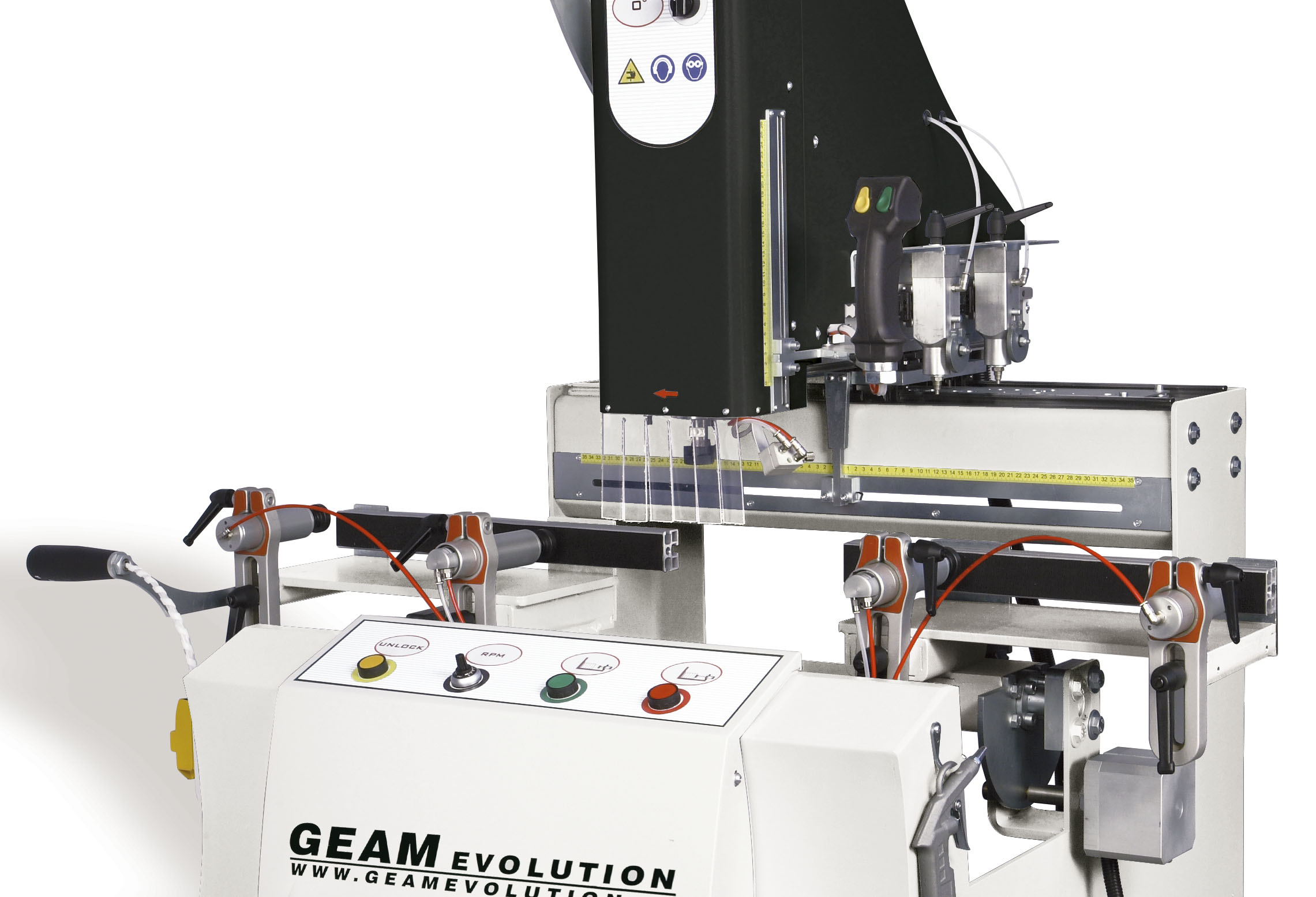

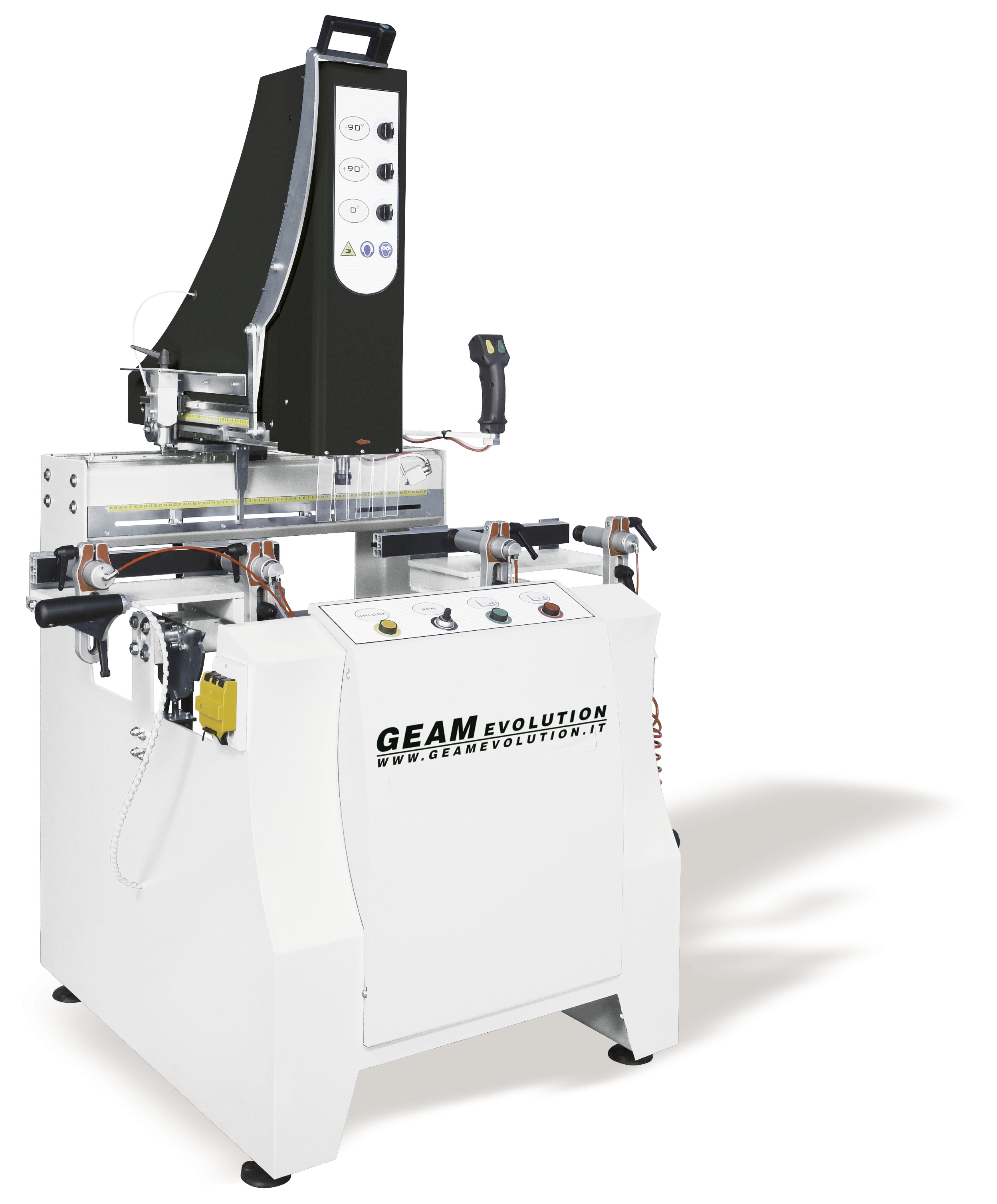

COPY SUPER
TECHNICAL DATA
Copy router operating on 3 axes, with pneumatic lubrication, 3 pneumatic tracer points.
Equipped with turning table at-90°/-45°/0°/+45°/+90°.
Quick and easy adjustment of the tracer points.
Equipped with variable speed spindle adjusted by inverter and potentiometer (from 2800 to 12000rpm) with Threephase motor 1,5HP.
Working capacities 630x350x260mm.
Mouvement of the axis on linear guides.
With 4 movable pneumatic clamps. Specially adressed for working on inox and steel.
STANDARD EQUIPMENT:
- 4x pneumatic clamps
- 3x tracer points with 3 diameters: 5/8/10mm
- 5x manual stops
- 1x copy template for standard executions
- Pneumatic spray mist lubrication
- Air filter
- Air gun
- Service Spanners
OPTIONALS:
- Tracer points with digital reading
- Virgin template
- Collet D. 10mm
- Emulsified cutting oil 20lt
We reserve the right to make technical changes.
