PIRANHA

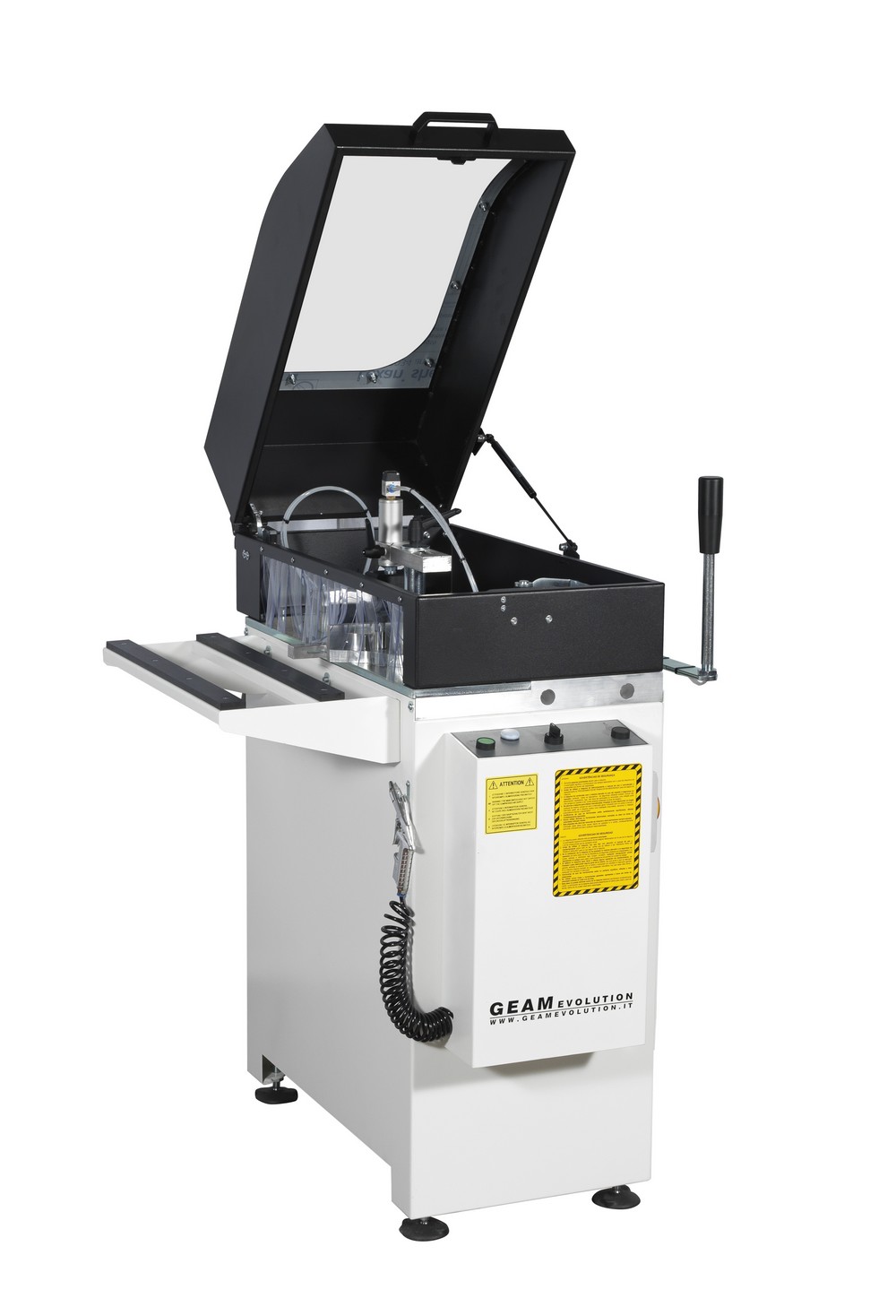

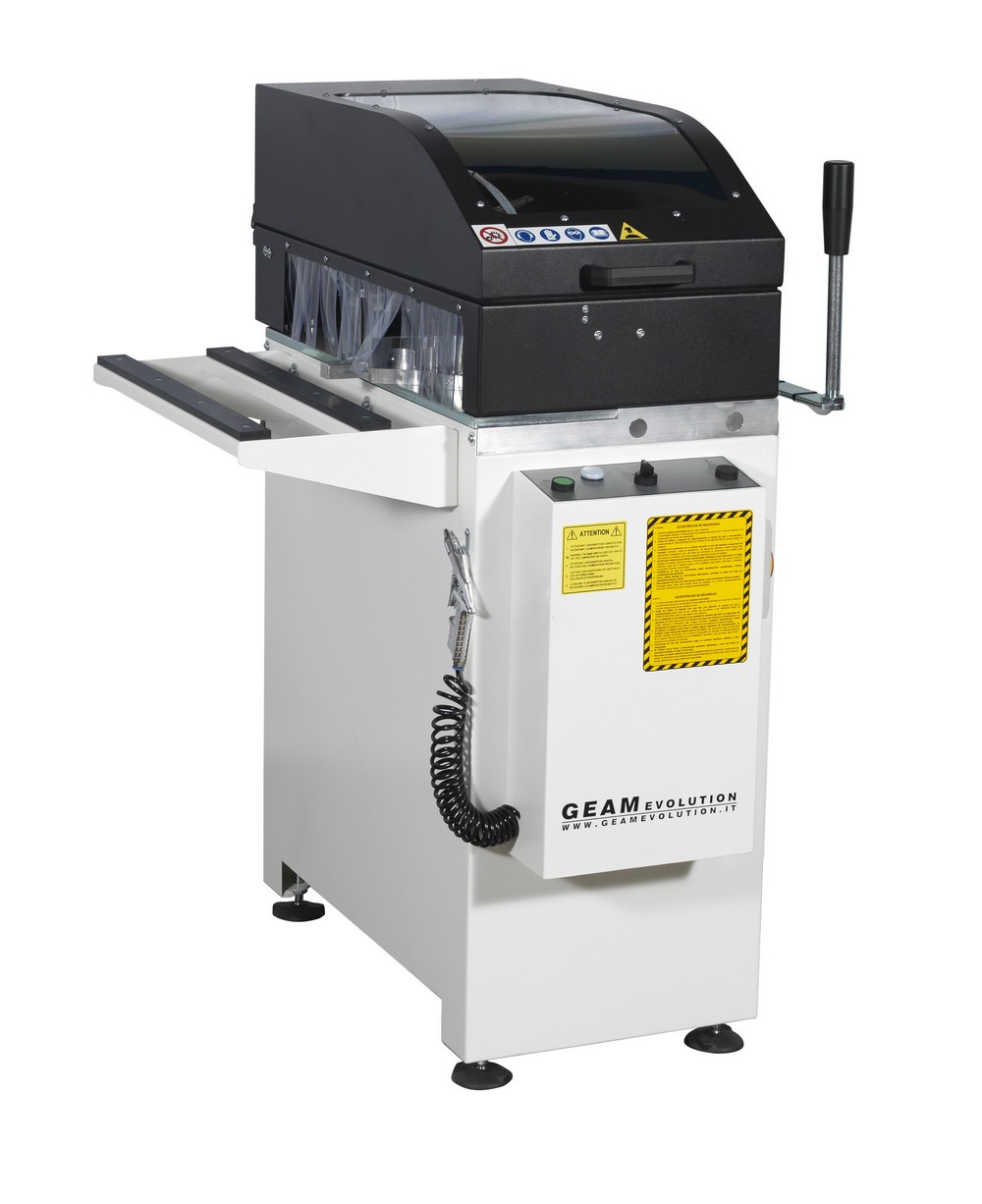

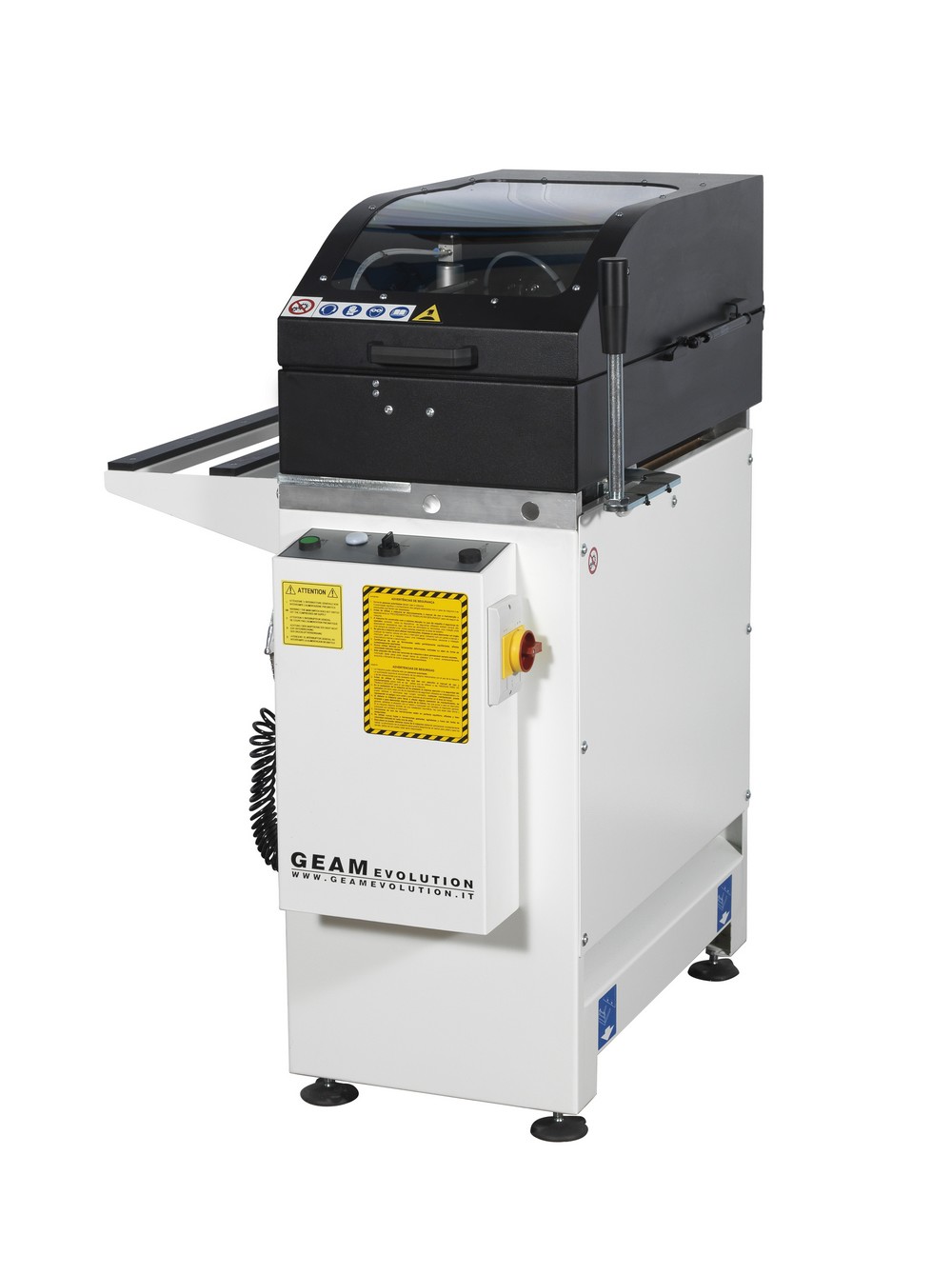

END-MILLING MACHINE PIRANHA

PIRANHA is a horizontal end-milling machine with manual feeding for working aluminium and PVC profiles.
Thanks to its accuracy this machine is particularly suitable for the production of windows and doors.
The milling unit movement is made on tempered and rectified round bars.
Fixed end-milling angles at -45° / 90° / +45°
Intermediate angle positiotions available.

TECHNICAL SPECIFICATIONS

• Max diameter of milling cutter: 180 mm
• Motor power: 2 HP / 1,5 kW 3-phase (220-400)
• Milling cutter rotation: 2800 rpm
• Max profile height: 110 mm
• Max profile width at 90°: 280 mm
• Max profile width at 45°: 150 mm
• Working stroke: 480 mm
• Tool holder length (D. 32 mm): 135 mm
• Air supply: 7 bar
• Dimensions: 880 (L) x 1000 (W) x 1240 (H) mm
• Weight: 130 Kg

STANDARD EQUIPMENT

• Integral protection in the cutting area
• Adjustable stop with fixed positions (-45° 7 90° / +45°) and intermediate angles
• End-milling stop with revolver (6 positions)
• Tool holder
• Set of pneumatic clamps (1 vertical + 1 horizontal)
• Side support
• Pneumatic tool lubrication by atomiser
• Pressure adjuster
• Air gun
• Suction outlet (D. 80 mm)

ON REQUEST

• CE equipment
• Quick tool holder change
• Single phase motor (2 HP / 1,5 kW 220V / 50 Hz)
