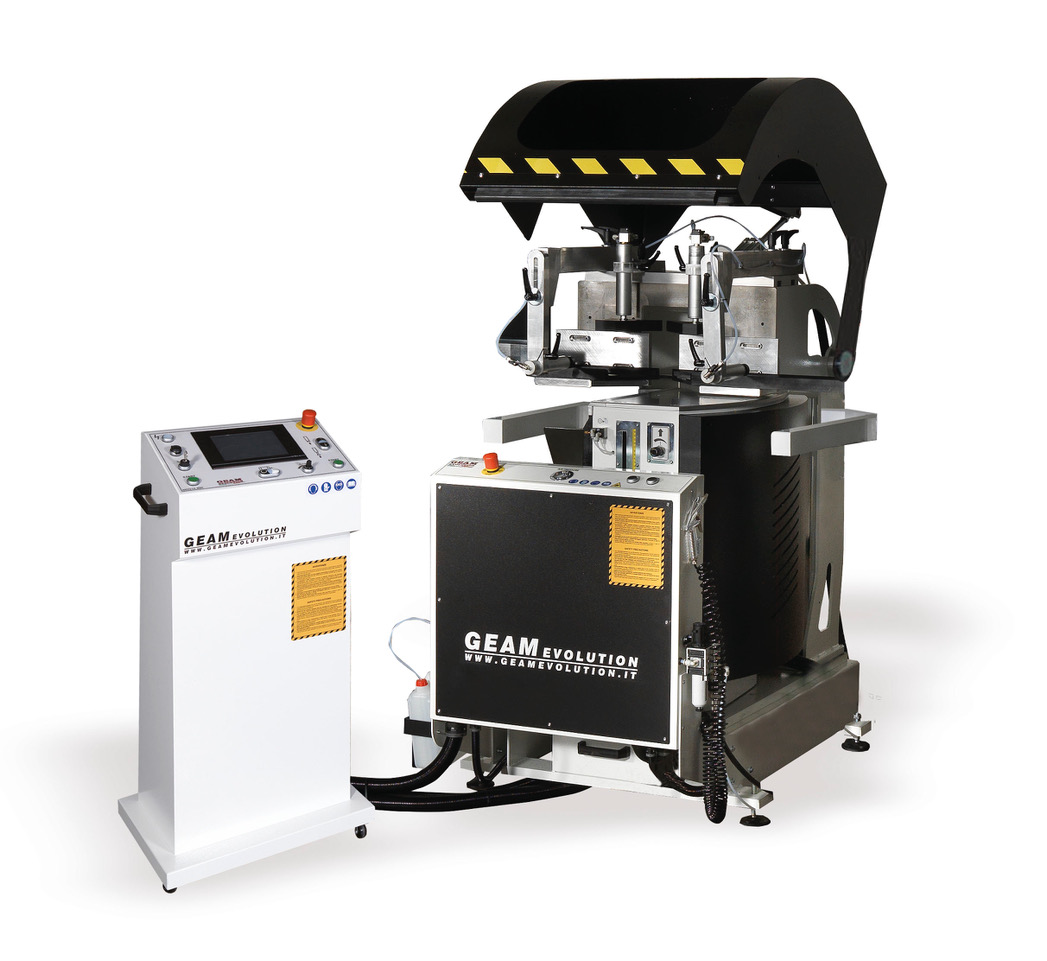

Single head cutting off machine with automatic raising of the blade

Single head cutting off machine with blade Ø 650mm, adjustable feed speed of the blade, electronic pivoting readable digital display. The machine has been created to make large cuts in aluminum and PVC. For optimal work, it is recommended to install roller conveyors with programmable stops.

Three-phase motor power 3 Kw
Blade elevation on ball-bearing guides and runners
Hydro-pneumatic blade feeding
Electronic pivoting inwards/outwards head from 20° right to 20° left with brushless motor
Start of cutting cycle with two-hand safety device
Nr.2 adjustable pneumatic vertical clamps with low-pressure device
Nr.2 adjustable pneumatic horizontal clamps with low-pressure device
Automatic closing and opening Carter protection of the cutting area
Automatic spray mist lubrication
Ready for loading/unloading roller conveyor connection
Ready for shavings extraction fann connection Ø120mm

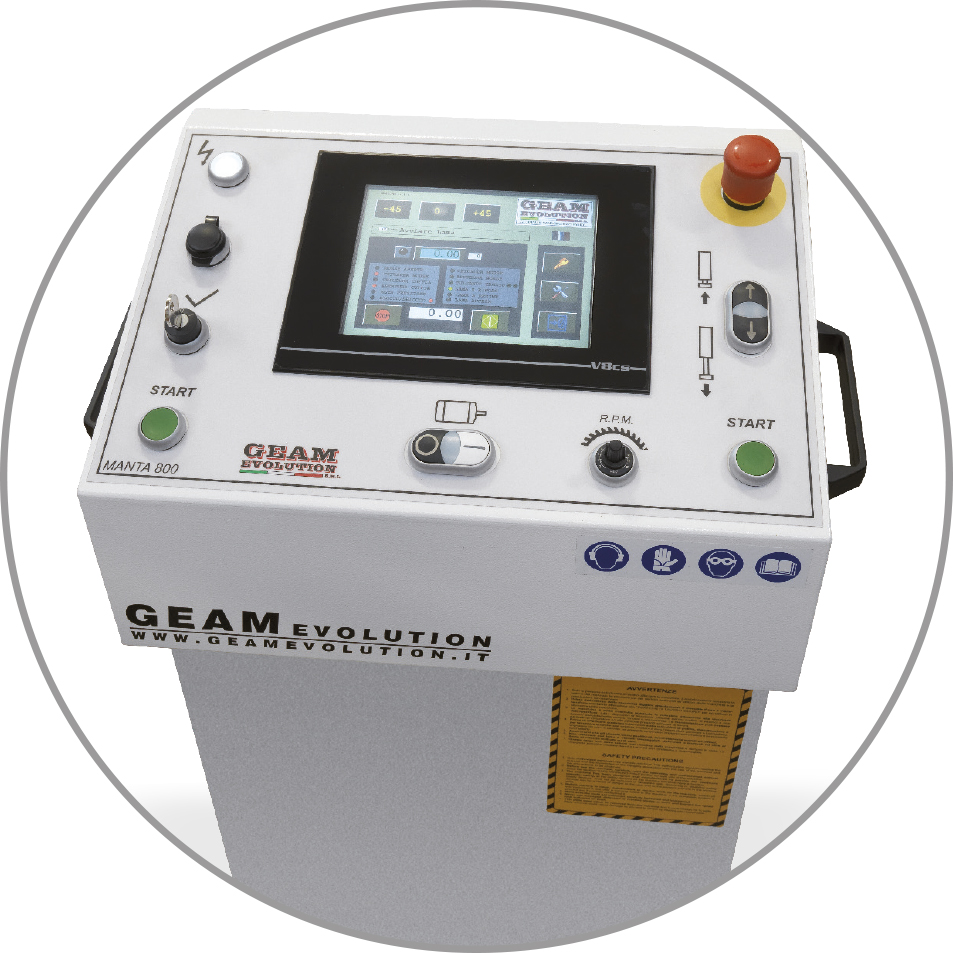

Movable console system with Industrial PLC with touch-screen 8″
USB connection
Overall dimensions: 140x119x176 cm
Weight: 800 Kg
