OCTOPUS TFF – CNC for cutting, drilling and tapping

Maximal flexibility. Compact and safe. Possibility to fit tiltable multispindle units to perform holes, counterbores and tapping. Manual positioning of the units. Exhauster connection.

The machine is composed by 4 units:

1 – Manual bar loading unit
Gripper to clamp the profile and has provision for manual adjustment:
Vertically from 0 to 210 mm
Horizontally from 0 to 150 mm
Capable of moving a weight of 10 kg per meter
Variable feed speed of the pusher from 1 to 24 mt / 1 ‘with 0.4 KW motor
Maximum loadable profile lenghth 6500mm

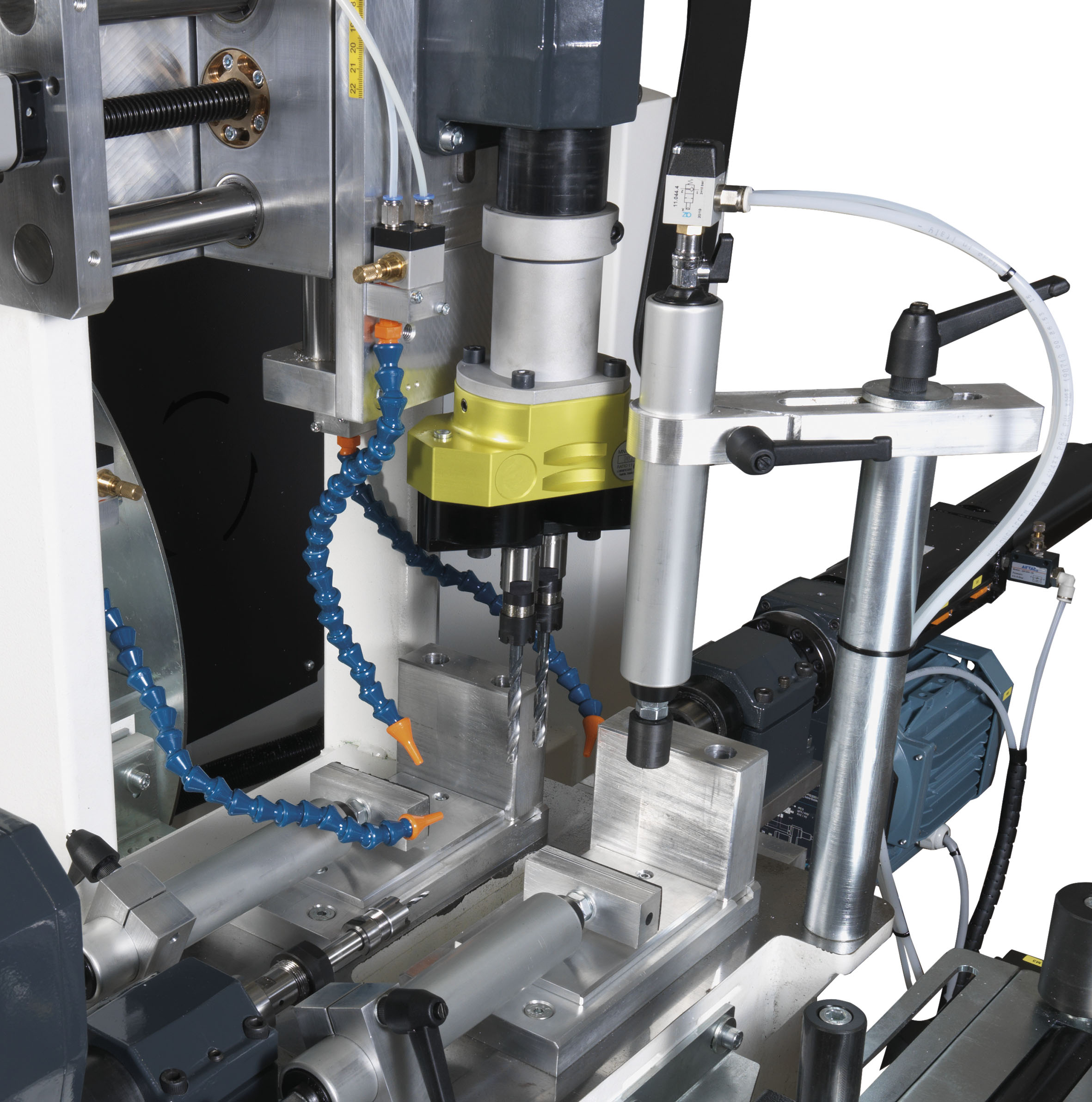

2 – Drilling and tapping units

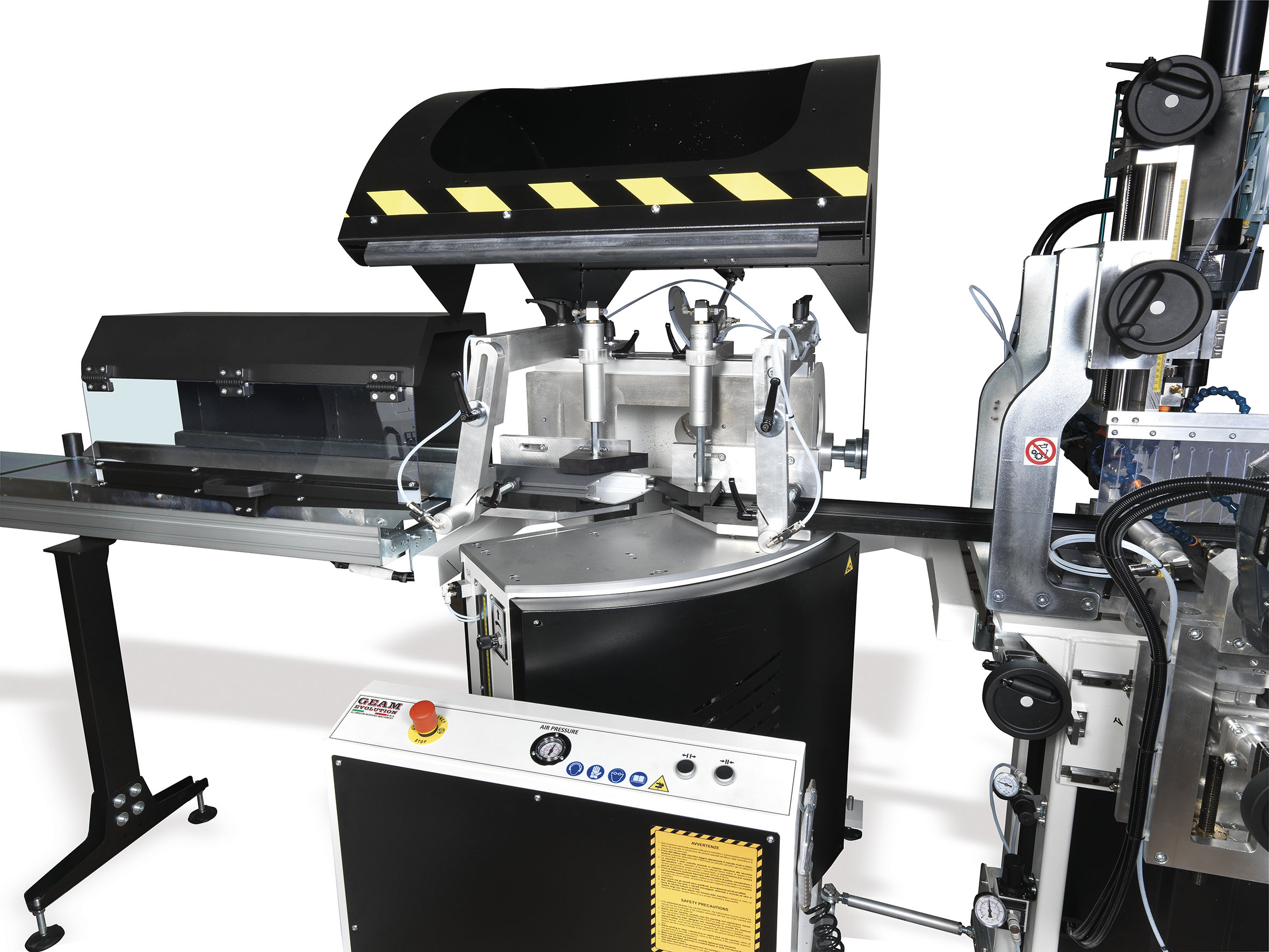

3 – Cutting unit
Cutting off machine with raising of the blade 650 mm
Blade motor power: 3 KW
Blade speed: 2800 rpm
Programmable electronic tilting of the blade at an angle from 20° to 160°
Oleopneumatic blade advance
Pair of horizontal pneumatic clamps
Pair of vertical pneumatic clamps
Integral protection of cutting area

4 – Manual unloding and storage unit
Maximum unloding profile 4000 mm

Touch Screen PC electronic control panel TFT 17”
Windows 10 system
Possibility to program:
a) Blade inclination
b) Drilling and tapping
c) Pusher feed speed
d) Lists of workings


  • Powered vertical drilling/counterboring motorized unit with position indicator
  • Powered horizontal drilling/counterboring motorized unit with position indicator
  • Powered vertical motorized tapping unit with digital display
  • Powered horizontal motorized tapping unit with position indicator
  • Conveyor belt
  • Blade diam. 650 mm.
  • Drilling bits several diameters
  • Tapping tools several diameters
  • Milling disc several diameters
  • Protection barriers
